See inside the machine

Build a whole factory to your output target, then take any single machine apart. Drag to orbit, scroll to zoom, click any part.

One melter, 1–10 candle machines

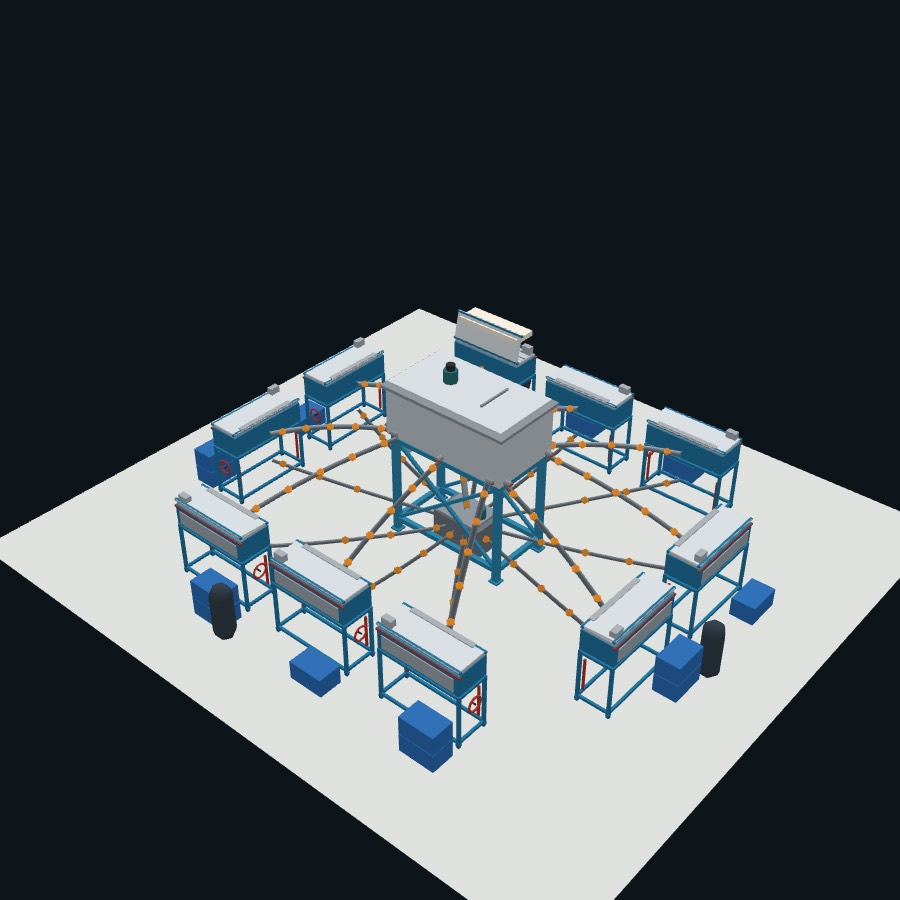

Build a candle factory

Build a candle factory Choose one melter with 1–10 machines. Explore the layout, equipment footprint and estimated staffing and output, then play an illustrative shift. Operating aisles need additional space.

Or take a single machine apart:

Clamping wax tray candle machine

Stick / Household Candle Machine with Clamping Wax Tray

Stick / Household Candle Machine with Clamping Wax Tray The full production cycle: the previous batch finishes cooling, is cut free and lifted out, the clamping tray opened and the surplus wax cake cleared, handwheel ejection, ejector return with automatic wick feed, then pouring and circulated water cooling.

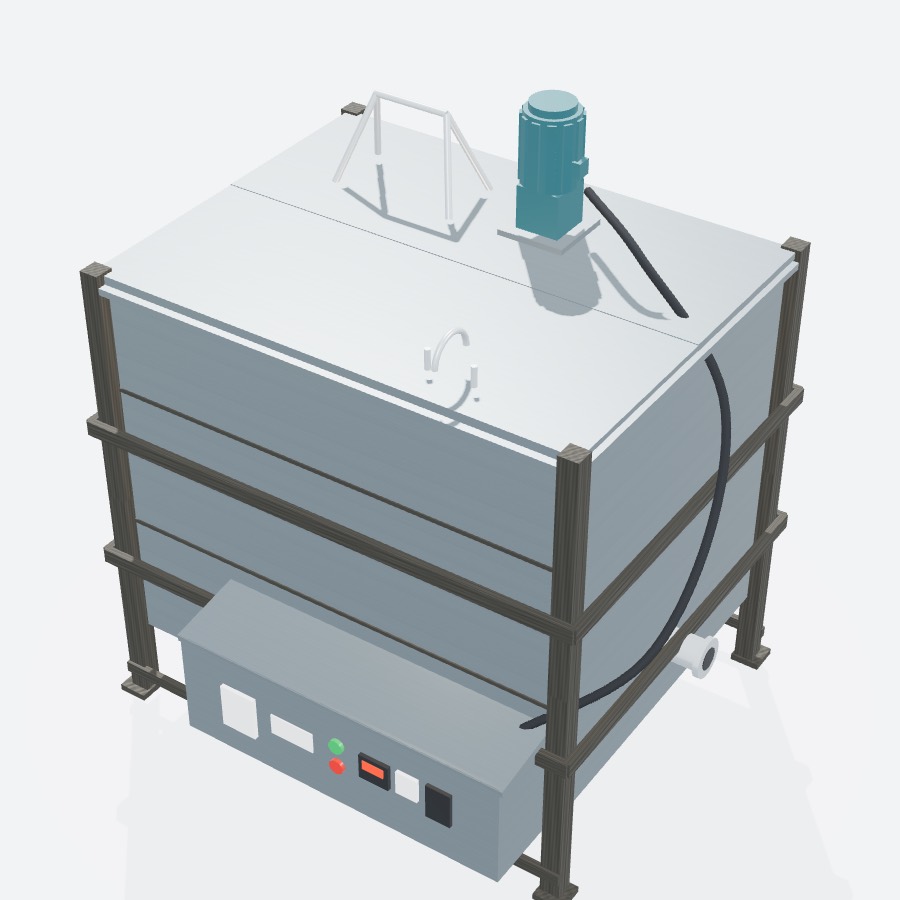

Electric heated wax melting tank

Single-Wall Electric Heated Wax Melting Tank with Agitator

Single-Wall Electric Heated Wax Melting Tank with Agitator The melting cycle: three U-shaped immersion elements heat from the bottom, the lid opens, and the low-speed high-torque agitator only starts once there is liquid wax to stir — then holds temperature.

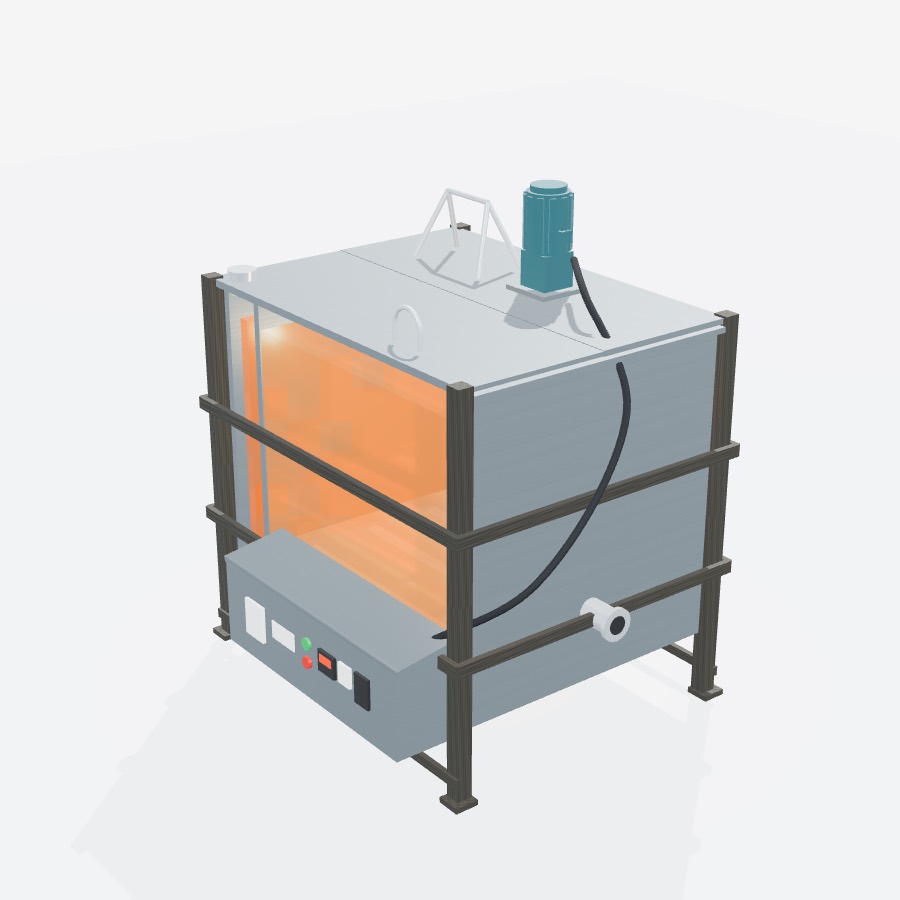

Double-wall oil jacket wax melter

Double-Wall Oil Jacket Wax Melter

Double-Wall Oil Jacket Wax Melter The same tank with one thing changed: the elements come out of the wax and go into a five-face oil jacket. Cut through it and count the faces — floor and four walls, welded shut at the top.

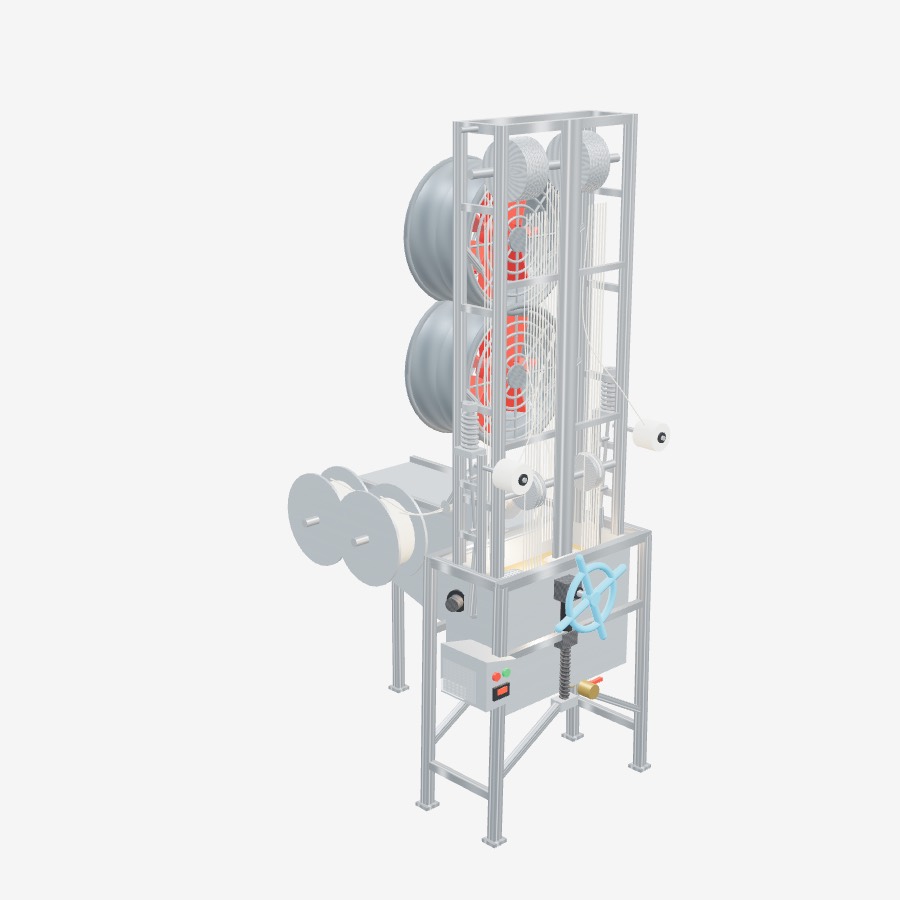

Dual-channel wick waxing machine

Dual-Channel Continuous Candle Wick Waxing Machine

Dual-Channel Continuous Candle Wick Waxing Machine One cord through seven dip-and-cool passes: down into the wax, up through the fan draught, over the sheave into the next groove, and onto the take-up drum thicker than it went in — both channels running continuously.

Korean Candles Machine

Korean Candles Machine

Korean Candles Machine Centre the wicks, cast the wax, insert and withdraw the pins, then eject upward. Inspect the blind tail holes.

LED Candle Making Machine

LED Candle Making Machine

LED Candle Making Machine Place the core before pouring. Cool, eject the shell with its core, remove the core and turn the shell upright.

Cup Shaped Candle Making Machine

Cup Shaped Candle Making Machine

Cup Shaped Candle Making Machine Raise the lower platform to close the moulds. Pour, cool and demould downward, then collect and turn the candles upright. No cotton wick.

Presentation models — accurate about layout, mechanism and production sequence, but not manufacturing CAD.

Want one tooled to your candle?

Send your candle dimensions and target output. We reply with a configuration and a price.
